KIPP K0646.1521106X20 Handle (Polyamide) 79.6 mm-Thread Steel-Pack of 2 Eccentric Lever, M6X20, Plastic Black, 2 Stück
4.0 (38 items)
Limited Time SaleUS$24.50 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215648267 | Release Date | 2026/04/12 | List Price | US$16.33 | Model Number | 215648267 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

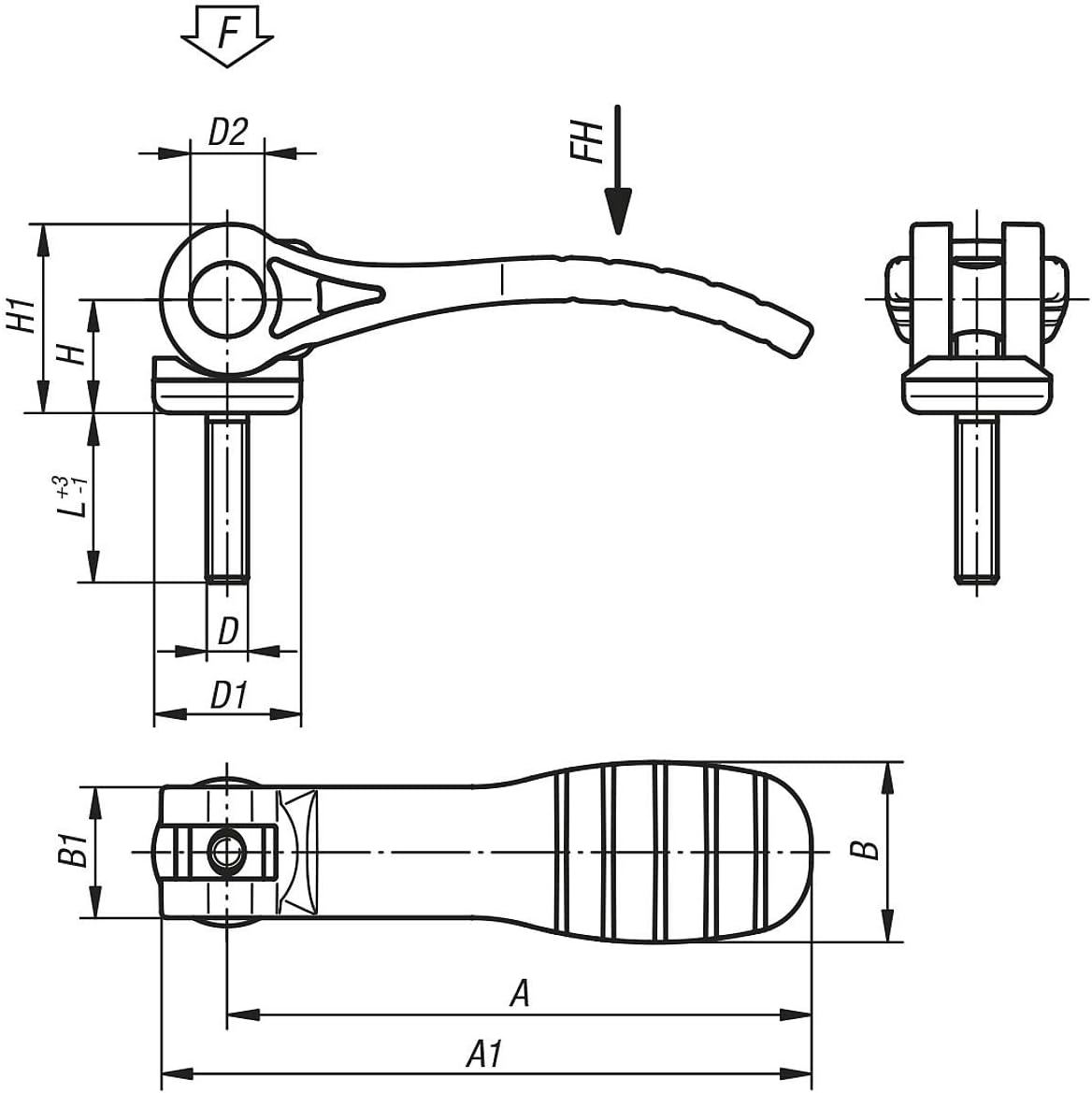

Item number: KIPP Eccentric lever K0646.1521106X20. Technical data: A = 71.5 mm. A1 = 79.6 mm. Width: 22 mm. B1 = 16 mm. Stroke S = 1.15 mm. D = M6. D1 = 18.1 mm. Diameter: 2 = 9 mm. Height: 14 mm. H1 = 23.4 mm. L = 20 mm. Clamping force F = 2.5 kN. Manual force FH = 124 N. Materials: Handle lever and pressure disc made of plastic PA 66 fibreglass reinforced. 1.4305 stainless steel axle bolt. Pin screw and washer steel, strength class 5.8. Handle lever, black. Black pressure disc. Blank axle bolts. Pin screw and disc blue passivated. Application: DIY area: chop saws, drill drills, aluminium profiles, etc. Hobby : bicycle, scooter, photo/camera tripod, etc. Commercial: stage technology for adjusting headlights and speakers, clamping technology for clamping workpieces, etc. A great advantage is that no additional tools are required when tensioning. Thanks to the torque-free tensioning, the workpieces do not have to be additionally secured. With the eccentric lever, it is possible to achieve the desired clamping force so that the workpiece is not damaged. Use of eccentric levers for assembly and manufacturing processes. But even in the rehabilitation area, eccentric levers are increasingly used to change sitting or lying positions quickly and easily. Note: Plastics have the property that they crawl under load (retardation), which can lead to a reduced clamping force. Notes on the pictures: The eccentric levers can have either a slotted or a Torx profile for production reasons. The version with external thread is symbol photos. The length of the male thread may vary in the picture. Please refer to the technical data.
- A=71.5 mm| A1=79.6 mm| B=22 mm| B1=16 mm| Hub S=1.15 mm| D=M6| D1=18.1 mm| D2=9 mm| H=14 mm| H1=23.4 mm| L=20 mm| clamping force F= 2.5 kW. N. Hand force FH = 124 N
- With the KIPP eccentric levers, you can quickly and easily fix objects and open again: screw in the bolts, press the eccentric lever down, and you're done
- Advantage: quick opening and closing of the eccentric lever, clamping force can be varied, suitable for all standard threads
- Product details: dimensions (L x W x H) 79.6 x 22 x 43.4 mm; weight: 31.36 g; eccentric lever plastic (polyamide); colour: black; external thread steel
- Box contents: 2 pieces
| Color | Plastic Black |
|---|---|
| Shape | Round |
| Brand Name | Kipp |
| Metal Type | Alloy Steel, Aluminum, Stainless Steel |
| Style Name | External thread steel |
| Unit Count | 2.0 Count |
| Handle Type | Pull Handle |
| Item Weight | 31.36 Grams |
| Finish Types | Painted |
| Manufacturer | KIPP – Bedienteile | Normelemente |
| Model Number | K0646.1521106X20 |
| Material Type | Plastic |
| Item Type Name | KIPP eccentric lever |
| Exterior Finish | Stainless Steel |
| Handle Material | Alloy Steel, Aluminum, Stainless Steel |
| Number of Items | 2 |
| Additional Features | Easy to Install |
| Included Components | Eccentric lever |
| Projection Distance | 79.6 Millimeters |
| Item Dimensions L x W | 3.17"L x 1.71"W |
| Global Trade Identification Number | 04059245267293 |
